EZFLO Small Residential System
Suitable for areas up to 1000 m2
The EZ-FLO1 is the affordable mainline equivalent of our best-selling hose/tap connected system. Ideal for small gardens, lawns, seed raising, drip systems, greenhouses, vertical gardens and more. Now includes a 25mm ball valve coupling with 20mm slip in adaptor.
Type: Affordable mainline system, ready to attach to your irrigation system, mains, tank or bore
Join thousands of Australians and New Zealanders using EZ-FLO to improve:
- Lawns
- Veggie gardens
- Ornamental gardens
Fill the tank with your chosen fertiliser and deliver nutrients with every drop of water.

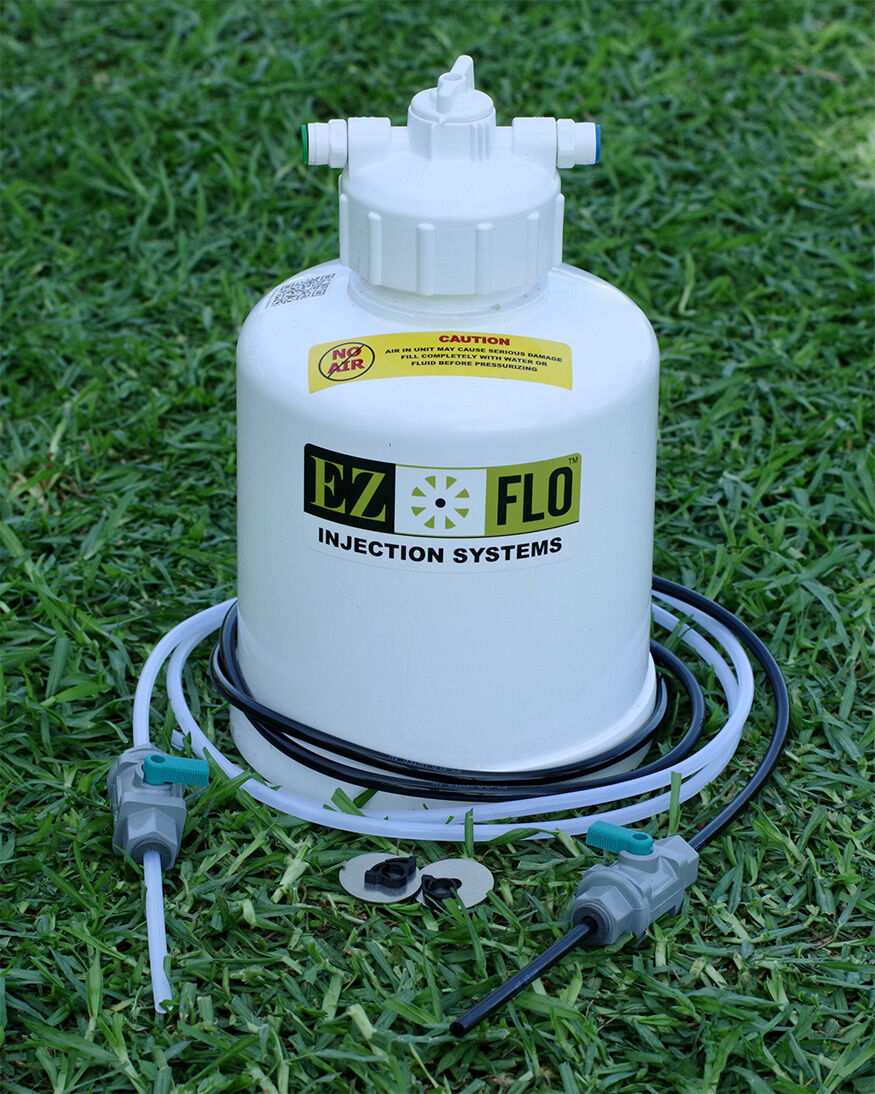

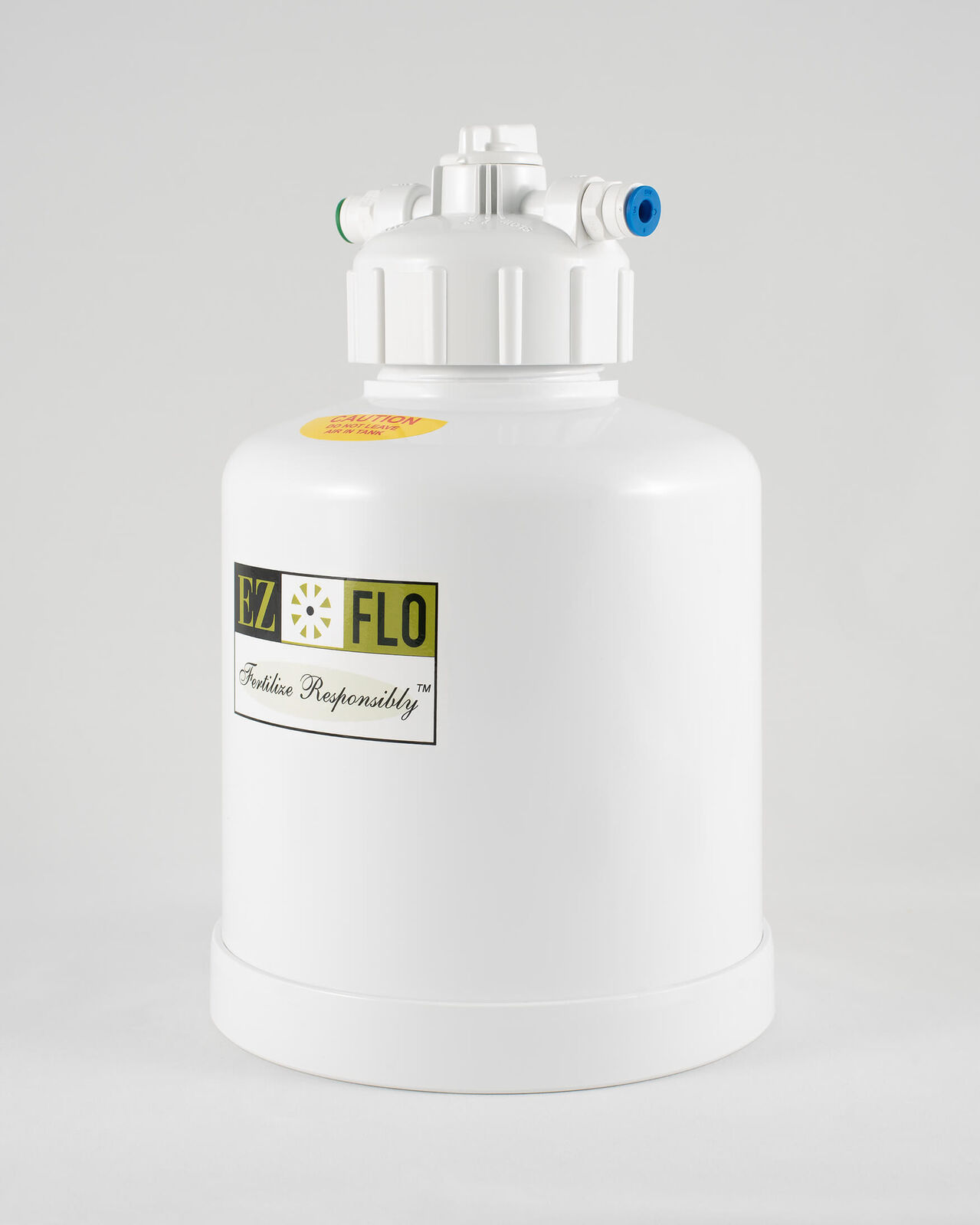

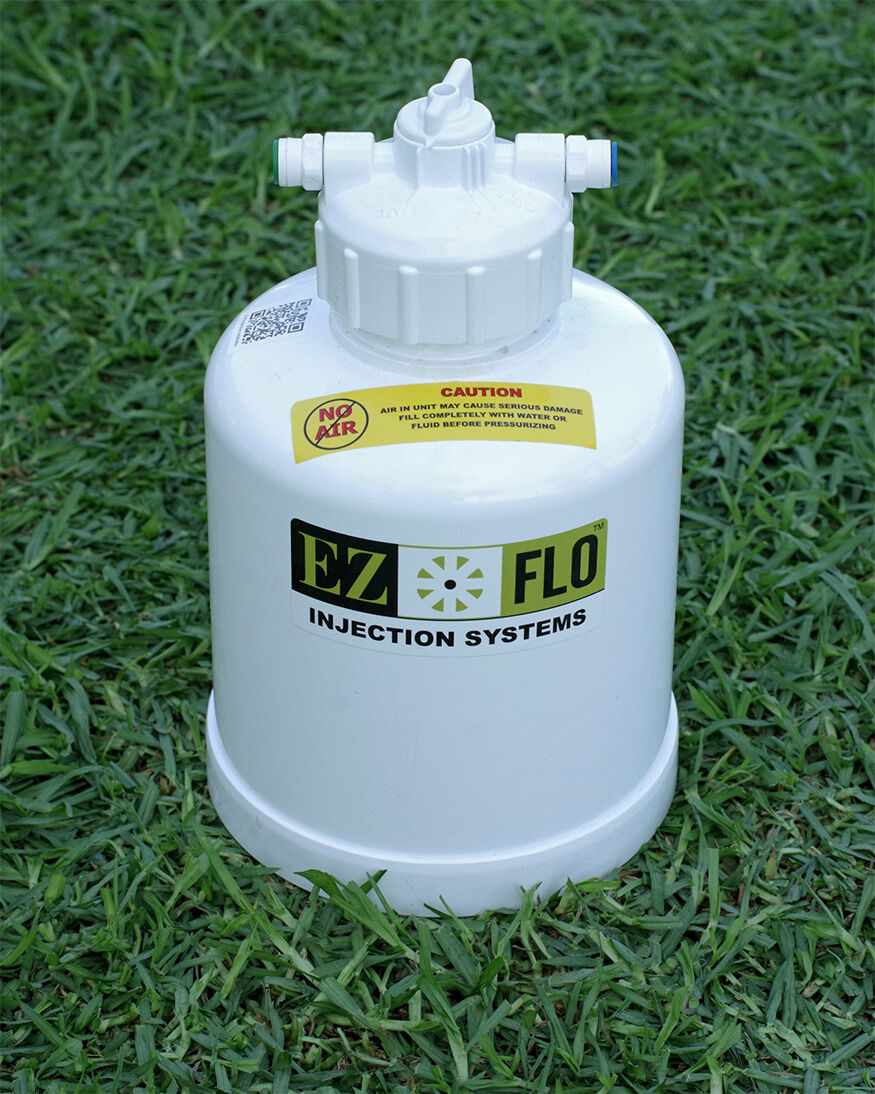

- 3.2L tank
- Proportioning cap
- 1.5 meters each of clear and black tube

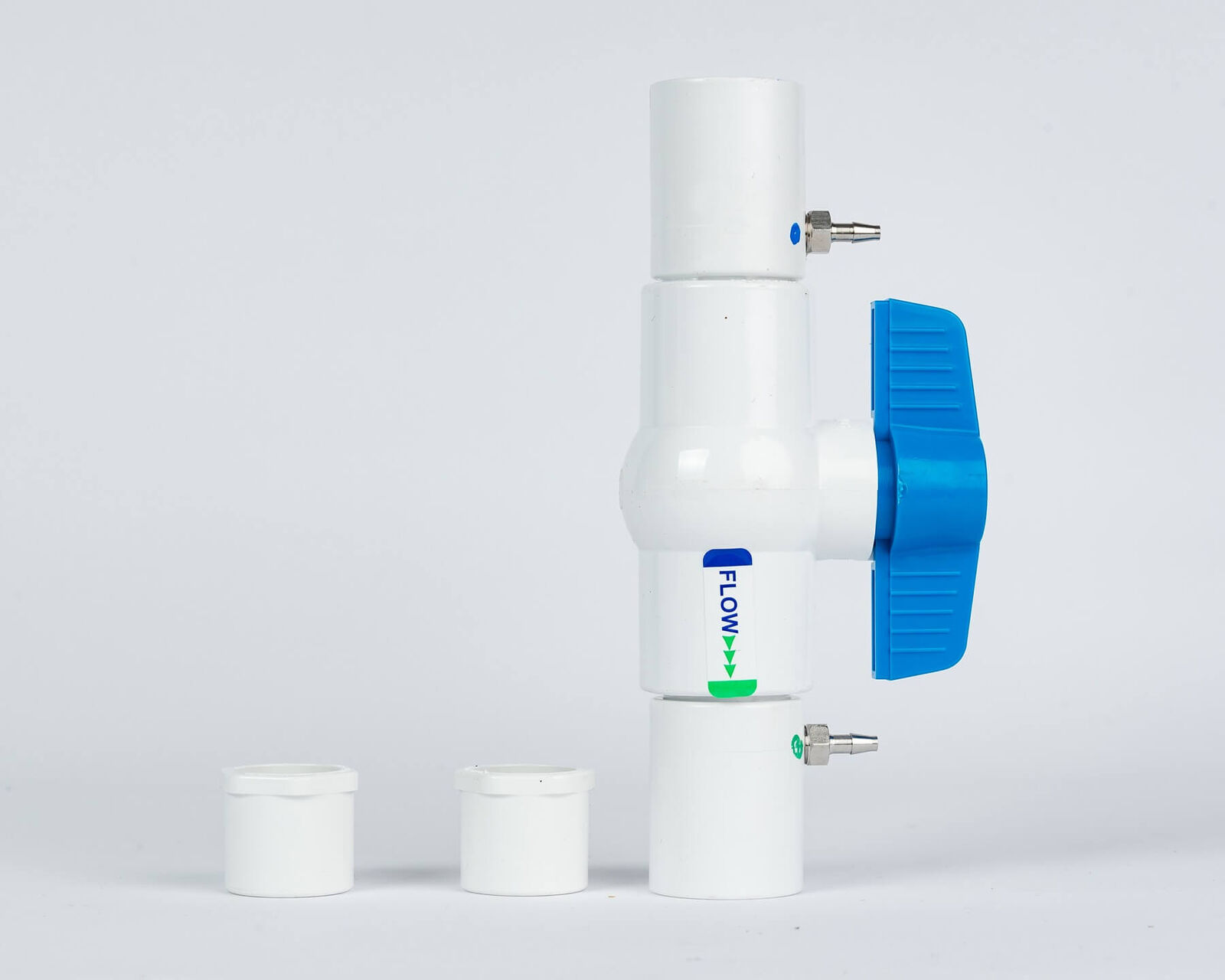

- Heavy-duty shut-off valves and liquid adaptor + 25mm ball valve coupling with 20mm slip in adaptor.
Additional Features: Ability to use most liquids or water-soluble concentrates.
- Additive capacity: 3.2 litres/ 3.2 kg water-soluble, approximate
Litres of treated water per refill: 1280 on fast setting to 48.000 on slow setting, two ratios in between - Operating pressure: minimum 5 psi (35 kPa) to maximum 80 psi (550 kPa)
- Irrigation mains flow rates: Minimum 2 litres per minute (lpm) to 300 litres per second (l/s) plus, depending on CBV size used.
- Dimensions: 30cm (H) × 18cm (D)
EZ-FLO is the fastest and easiest way to have healthy plants, turf and crops. Comes in a range of sizes to suit a broad range of applications, from residential gardens to commercial golf courses and small crops. Dispenses a precise amount of concentrated fertiliser every time you water. No matter how small or large your property is you can take advantage of EZ-FLO products to save money, conserve valuable resources, and fertilise more efficiently and quickly.
- Add your liquid or soluble fertiliser (compatible products can be combined)
- Top up with water
- Connect to hose or irrigation system
- Select dilution setting (4 settings from fast to slow that correspond to the recommended application rates on the products)
- Get ready for automatic fertigation
Optional:
- Connect to hose with normal hose nozzle
- Attach a sprinkler
- Add a timer for automation
- Lawns & home gardens
- Vegetable plots
- Nurseries & greenhouses
- Vertical gardens & green walls
- Small farms & larger properties
Buying as a bundle?
Add 2.5L of Lawn Envy and top up with water to ensure the entire unit is filled with liquid to create a vacuum. A 10L Lawn Envy will provide 4 x refills.
- 1:100 (fast)
- 1:250
- 1:400
- 1:1000 (slow)
- 1:400 (fast)
- 1:2000
- 1:8000
- 1:15000 (slow)
An easy way to apply concentrated fertilisers to your lawn, plants and gardens. Great for small lawn maintenance businesses or larger properties too as you can set and leave, then move to the next area as required, fertilising whilst you’re doing other maintenance.
What is fertigation?
Healthy plants are not achieved with water alone, they also need nutrients. As the name implies, fertigation is the process by which fertiliser is applied with irrigation water.
Fertiliser + irrigation = fertigation.
Historically, the technique of fertigation was used in commercial agriculture and horticulture. By applying fertiliser through irrigation water, you have superior control over the timing, quantity and concentration of fertiliser applied.
Benefits:
- Better nutrient control
- More efficient application
- Less waste and runoff
- Improved plant performance
How it works
EZ-FLO requires either a hose tap adapter for residential systems or for permanent irrigation a main inline adapter (CBV). These provide a slight pressure drop allowing a small stream of water from the hose or irrigation pipe to enter the EZ-FLO, displace the fertiliser concentrate, then re-introduce it back into the main water stream where it is diluted. As water enters the tank separation is achieved – heavier concentrate on the bottom and lighter water on the top. EZ-FLO only pulls concentrate from the bottom of the tank; it does not dilute the concentrate.
The result is consistent levels of fertiliser throughout the whole cycle until the fertiliser is depleted and is replaced with water. EZ-FLO has no moving parts, requires zero maintenance and zero power. The ease-of-use sets EZ-FLO apart from competing fertigation technologies.
You can use EZ-FLO for microdosing – where small amounts of fertiliser are applied every time you water – by selecting the ‘slow’ setting. At 1:1.000 one litre of concentrate is displaced for every thousand litres of water if using the hose and drip system and 1:15.000 if using the main-line systems.
Microdosing is beneficial as plants can absorb nutrients immediately. This creates a robust root system, generating healthier plants with less water, and it also reduces fertiliser run-off.
What makes EZ-FLO stand out from the competition? The simplicity is on our list; it’s not called EZ-FLO (pronounced ‘easy flow’) for nothing. But having said this is the number one advantage, we have probably done EZ-FLO an injustice because there are so many advantages.
Installation & Resources
- Check out the installation guide LINK
- Videos: https://www.ezflo.com.au/videos/
